产品详情

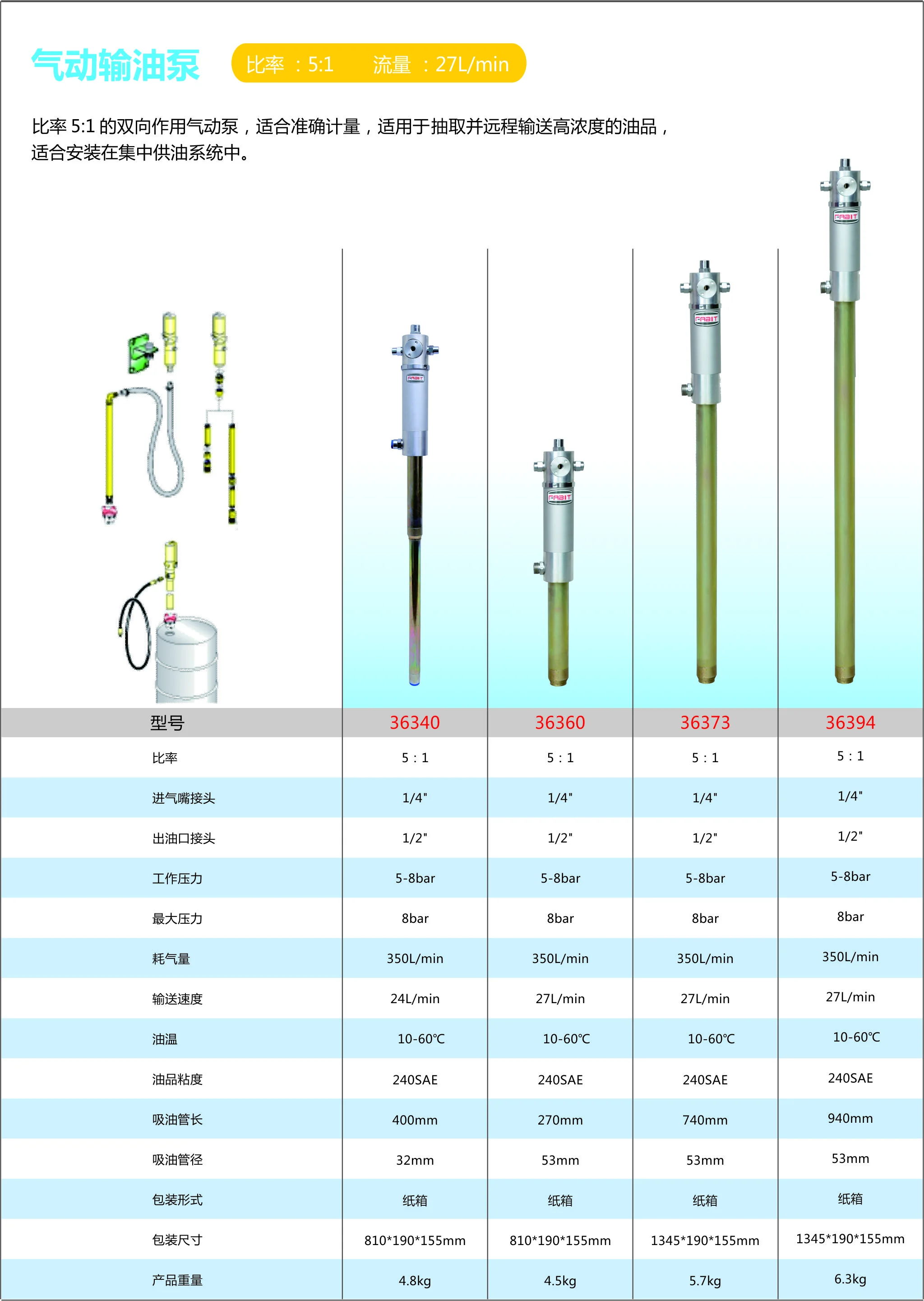

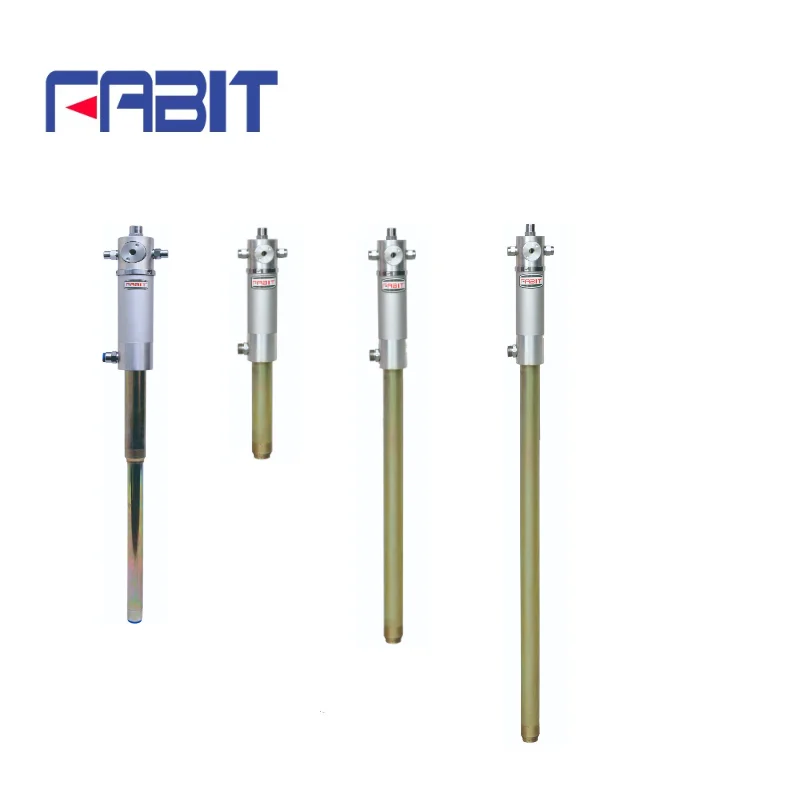

PNEUMATIC OIL TRANSFER PUMP
Air-operated double-acting pumps RATl0 5:1., ideal for long distance distribution to transfer hiah viscosity and heavy fluids,This pumps quarantee high performance in flow metering, particularly effective in centralized oil supply system.
比率5:1的双向作用气动泵，适合准确计量，适用于抽取并远程输送高浓度的油品，适合安装在集中供油系统中。
| Model | 36340 | 36060 | 36073 | 36394 |
| 比率 Ratio | 5:01 | 5:1 | 5:1 | 5:1 |
| 进气嘴接头 Airinlet connection | 1/4" | 1/4" | 1/4" | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" | 1/2" | 1/2" | 1/2" |
| 工作压力 Air working pressure | 5-8bar | 5-8bar | 5-8bar | 5-8bar |
| 最大压力 Maximum pressure | 8bar | 8bar | 8bar | 8bar |
| 耗气量 Average air consumption | 350L/min | 350L/min | 350L/min | 350L/min |
| 输送速度 Flow rate | 24L/min | 27L/min | 27L/min | 27L/min |
| 油温 Fluid temperature | -10-60°C | -10-60°C | -10-60°C | -10-60°C |
| 油品粘度 Max deliverable oilviscosity | 240SAE | 240SAE | 240SAE | 240SAE |
| 吸油管长 Length ofpumpingtube | 400mm | 270mm | 740mm | 940mm |
| 吸油管径 Diameterofpumpingtube | 32mm | 53mm | 53mm | 53mm |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸 Packing size | 1050*180*145mm | 670*180*145mm | 1335*180*145mm | 1335*180*145mm |
| 产品重量 Gross weight | 7.8kg | 6.8kg | 8.8kg | 9.7kg |
产品详情
PNEUMATIC OIL TRANSFER PUMP
Air-operated double-acting pumps RATl0 5:1., ideal for long distance distribution to transfer hiah viscosity and heavy fluids,This pumps quarantee high performance in flow metering, particularly effective in centralized oil supply system.
比率5:1的双向作用气动泵，适合准确计量，适用于抽取并远程输送高浓度的油品，适合安装在集中供油系统中。
| Model | 36340 | 36060 | 36073 | 36394 |
| 比率 Ratio | 5:01 | 5:1 | 5:1 | 5:1 |
| 进气嘴接头 Airinlet connection | 1/4" | 1/4" | 1/4" | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" | 1/2" | 1/2" | 1/2" |
| 工作压力 Air working pressure | 5-8bar | 5-8bar | 5-8bar | 5-8bar |
| 最大压力 Maximum pressure | 8bar | 8bar | 8bar | 8bar |
| 耗气量 Average air consumption | 350L/min | 350L/min | 350L/min | 350L/min |
| 输送速度 Flow rate | 24L/min | 27L/min | 27L/min | 27L/min |
| 油温 Fluid temperature | -10-60°C | -10-60°C | -10-60°C | -10-60°C |
| 油品粘度 Max deliverable oilviscosity | 240SAE | 240SAE | 240SAE | 240SAE |
| 吸油管长 Length ofpumpingtube | 400mm | 270mm | 740mm | 940mm |
| 吸油管径 Diameterofpumpingtube | 32mm | 53mm | 53mm | 53mm |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸 Packing size | 1050*180*145mm | 670*180*145mm | 1335*180*145mm | 1335*180*145mm |
| 产品重量 Gross weight | 7.8kg | 6.8kg | 8.8kg | 9.7kg |
