产品详情

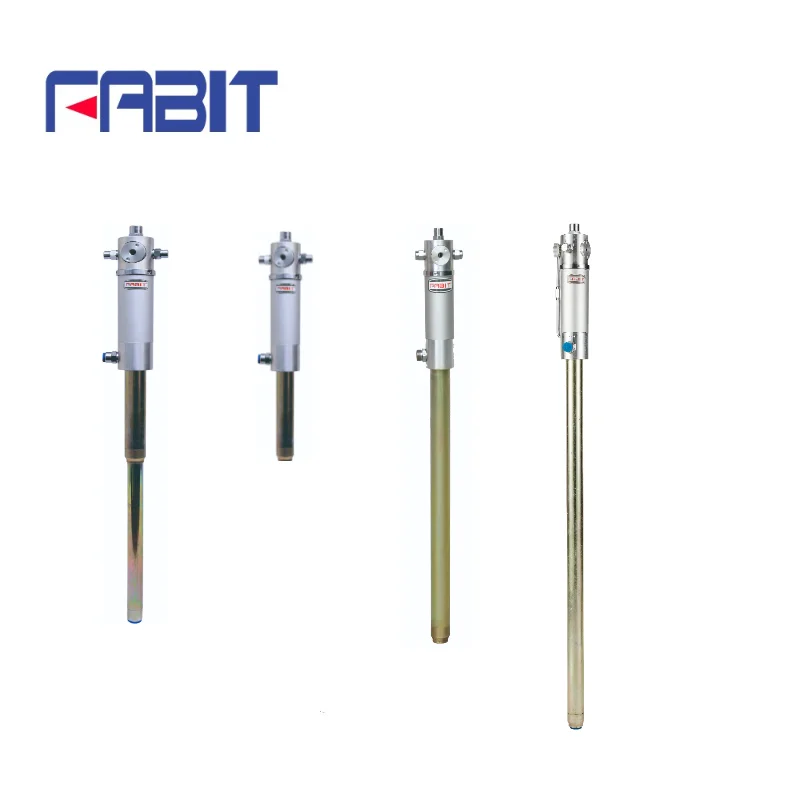

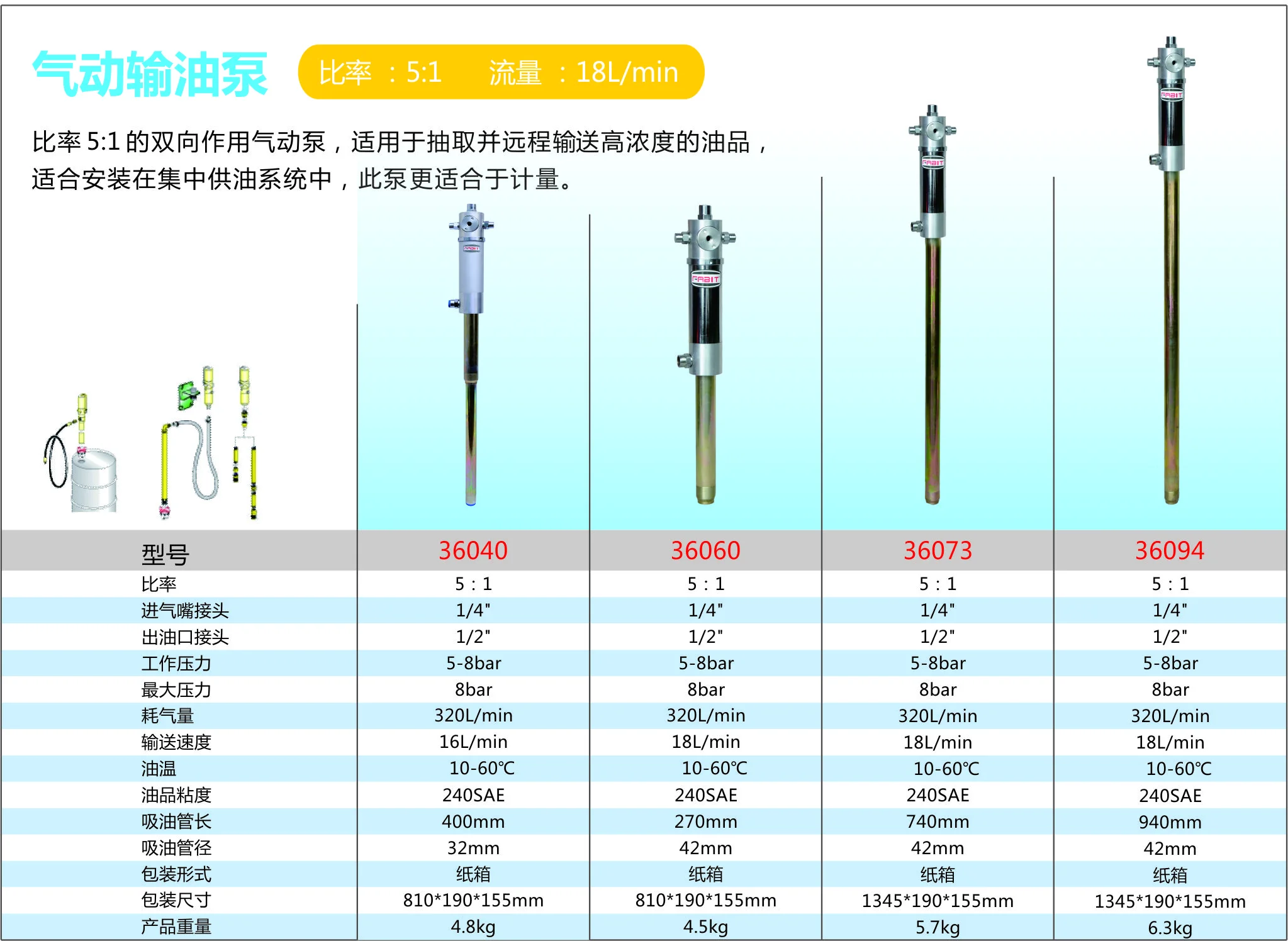

PNEUMATIC OIL TRANSFER PUMP
Double action pneumatic pump with ratio of 5:1, suitable for pumping and delivering high-concentration oil products remotely,suitable forinstallation in centralized oil supplysystems,this pumpis more suitable for metering.
比率5:1的双向作用气动泵，适用于抽取并远程输送高浓度的油品，适合安装在集中供油系统中，此泵更适合于计量。
| Model | 36040 | 36060 | 36073 | 36094 |
| 比率 Ratio | 5:1 | 5:1 | 5:1 | 5:1 |
| 进气嘴接头 Airinlet connectioan | 1/4" | 1/4" | 1/4" | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" | 1/2" | 1/2" | 1/2" |
| 工作压力 Air working pressure | 5-8bar | 5-8bar | 5-8bar | 5-8bar |
| 最大压力 Maximum pressure | 8bar | 8bar | 8bar | 8bar |
| 耗气量 Average air consumption | 320L/min | 320L/min | 320L/min | 320L/min |
| 输送速度 Flow rate | 16L/min | 18L/min | 18L/min | 18L/min |
| 油温 Fluid temperature | -10-60°C | -10-60°C | -10-60°C | -10-60°C |
| 油品粘度 Max deliverable oilviscosity | 240SAE | 240SAE | 240SAE | 240SAE |
| 吸油管长 Length ofpumpingtube | 400mm | 270mm | 740mm | 940mm |
| 吸油管径 Diameterofpumpingtube | 32mm | 42mm | 42mm | 42mm |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸 Packing size | 1050*180*145mm | 670*180*145mm | 1335*180*145mm | 1335*180*145mm |
| 产品重量 Gross weight | 5.9kg | 5.2kg | 6.5kg | 7.2kg |
产品详情
PNEUMATIC OIL TRANSFER PUMP
Double action pneumatic pump with ratio of 5:1, suitable for pumping and delivering high-concentration oil products remotely,suitable forinstallation in centralized oil supplysystems,this pumpis more suitable for metering.
比率5:1的双向作用气动泵，适用于抽取并远程输送高浓度的油品，适合安装在集中供油系统中，此泵更适合于计量。
| Model | 36040 | 36060 | 36073 | 36094 |
| 比率 Ratio | 5:1 | 5:1 | 5:1 | 5:1 |
| 进气嘴接头 Airinlet connectioan | 1/4" | 1/4" | 1/4" | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" | 1/2" | 1/2" | 1/2" |
| 工作压力 Air working pressure | 5-8bar | 5-8bar | 5-8bar | 5-8bar |
| 最大压力 Maximum pressure | 8bar | 8bar | 8bar | 8bar |
| 耗气量 Average air consumption | 320L/min | 320L/min | 320L/min | 320L/min |
| 输送速度 Flow rate | 16L/min | 18L/min | 18L/min | 18L/min |
| 油温 Fluid temperature | -10-60°C | -10-60°C | -10-60°C | -10-60°C |
| 油品粘度 Max deliverable oilviscosity | 240SAE | 240SAE | 240SAE | 240SAE |
| 吸油管长 Length ofpumpingtube | 400mm | 270mm | 740mm | 940mm |
| 吸油管径 Diameterofpumpingtube | 32mm | 42mm | 42mm | 42mm |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸 Packing size | 1050*180*145mm | 670*180*145mm | 1335*180*145mm | 1335*180*145mm |
| 产品重量 Gross weight | 5.9kg | 5.2kg | 6.5kg | 7.2kg |
