浏览器自带分享功能也很好用哦~可方便携带的，便于操作的注油套件，适用于180-220kg油桶吸油的手拖车式注油套件。
在线客服
客服一
产品详情

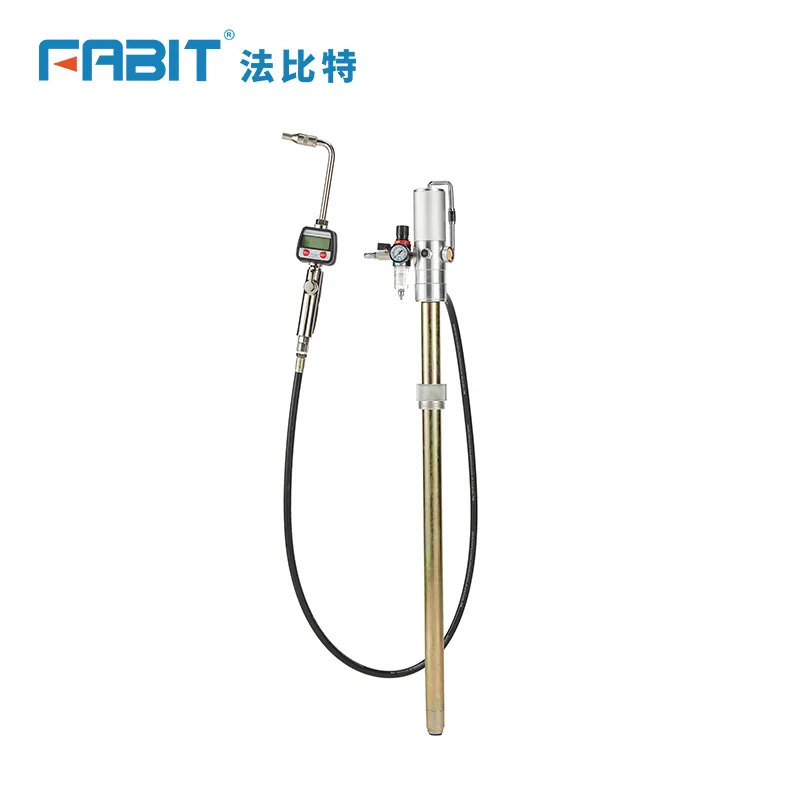

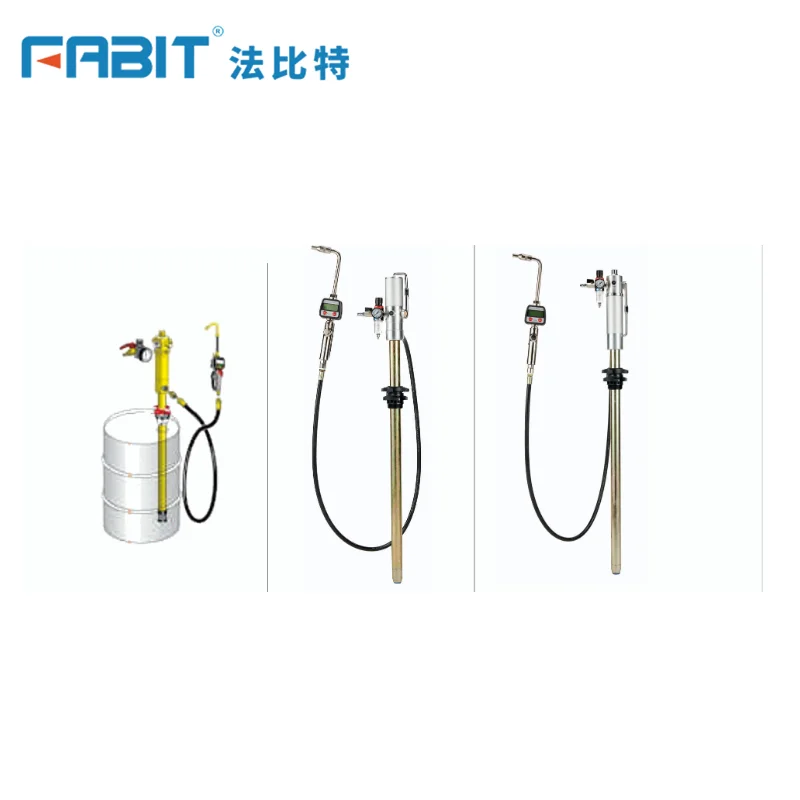

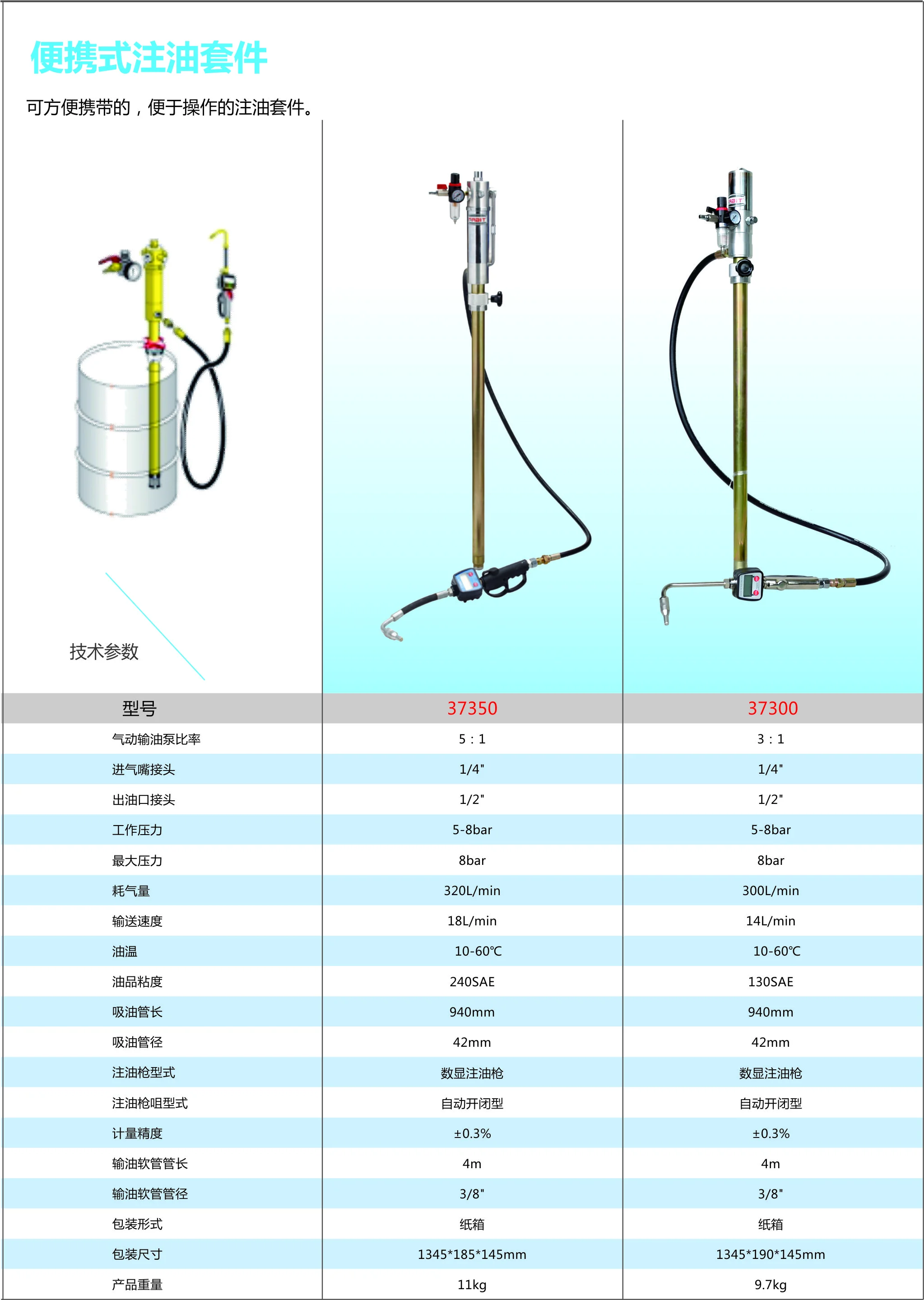

PORTABLE OIL TRANSFER KIT
Oil dispenser kit for drums or tanks. The ideal combination for dispensing oil in any workplace.The kitis equipped with digital oil gun,which makeiteasier to operate independently as oil delivery station.
可方便携带的，便于操作的注油套件。
| Model | 37300 | 37350 |
| 气动输油泵比率 Pneumaticpump ratio | 3:1 | 5:1 |
| 进气嘴接头 Airinlet connection | 1/4" | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" | 1/2" |
| 工作压力 Air working pressure | 5-8bar | 5-8bar |
| 最大压力 Maximum pressure | 8bar | 8bar |
| 耗气量 Average air consumption | 300L/min | 300L/min |
| 输送速度 Flow rate | 14L/min | 18L/min |
| 油温 Fluid temperature | -10-60°C | -10-60°C |
| 油品粘度 Max deliverable oil viscosity | 130SAE | 240SAE |
| 吸油管长 Length ofpumpingtube | 940mm | 940mm |
| 吸油管径 Diameterofpumpingtube | 42mm | 42mm |
| 注油枪型式 Oilgun series | 数显注油枪 Digitaloil gun | 数显注油枪 Digitaloil gun |
| 注油枪咀型式 Type ofoilgun nozzle | 自动开闭型 Automati apafiater nozzle | 自动开闭型 Automati apafiater nozzle |
| 计量精度 Measuring precision | 士0.3% | 士0.3% |
| 输油软管管长 Length offillinghose | 4m | 4m |
| 输油软管管径 Diameter offillinghose | 3/8" | 3/8" |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸 Packingsize | 1335*180*145mm | 1335*180*145mm |
| 产品重量 Gross weight | 9.2kg | 10.3kg |
产品详情
PORTABLE OIL TRANSFER KIT
Oil dispenser kit for drums or tanks. The ideal combination for dispensing oil in any workplace.The kitis equipped with digital oil gun,which makeiteasier to operate independently as oil delivery station.
可方便携带的，便于操作的注油套件。
| Model | 37300 | 37350 |
| 气动输油泵比率 Pneumaticpump ratio | 3:1 | 5:1 |
| 进气嘴接头 Airinlet connection | 1/4" | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" | 1/2" |
| 工作压力 Air working pressure | 5-8bar | 5-8bar |
| 最大压力 Maximum pressure | 8bar | 8bar |
| 耗气量 Average air consumption | 300L/min | 300L/min |
| 输送速度 Flow rate | 14L/min | 18L/min |
| 油温 Fluid temperature | -10-60°C | -10-60°C |
| 油品粘度 Max deliverable oil viscosity | 130SAE | 240SAE |
| 吸油管长 Length ofpumpingtube | 940mm | 940mm |
| 吸油管径 Diameterofpumpingtube | 42mm | 42mm |
| 注油枪型式 Oilgun series | 数显注油枪 Digitaloil gun | 数显注油枪 Digitaloil gun |
| 注油枪咀型式 Type ofoilgun nozzle | 自动开闭型 Automati apafiater nozzle | 自动开闭型 Automati apafiater nozzle |
| 计量精度 Measuring precision | 士0.3% | 士0.3% |
| 输油软管管长 Length offillinghose | 4m | 4m |
| 输油软管管径 Diameter offillinghose | 3/8" | 3/8" |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸 Packingsize | 1335*180*145mm | 1335*180*145mm |
| 产品重量 Gross weight | 9.2kg | 10.3kg |
