浏览器自带分享功能也很好用哦~移动式气动注油机，比率3：1的双向作用气动泵，流量：14L/min ,并配有一辆适合180-220公斤的油桶拖车，使用方便，操作简易，用途普遍 ，不仅用于汽车行业的制造﹑维修，美容等服务，而且适用于工业﹑农业，建筑业等工程机械设备的制造﹑维修，保养。
37200数显计量油枪
37201预设定注油枪
37200数显计量油枪
37201预设定注油枪
在线客服
客服一
产品详情

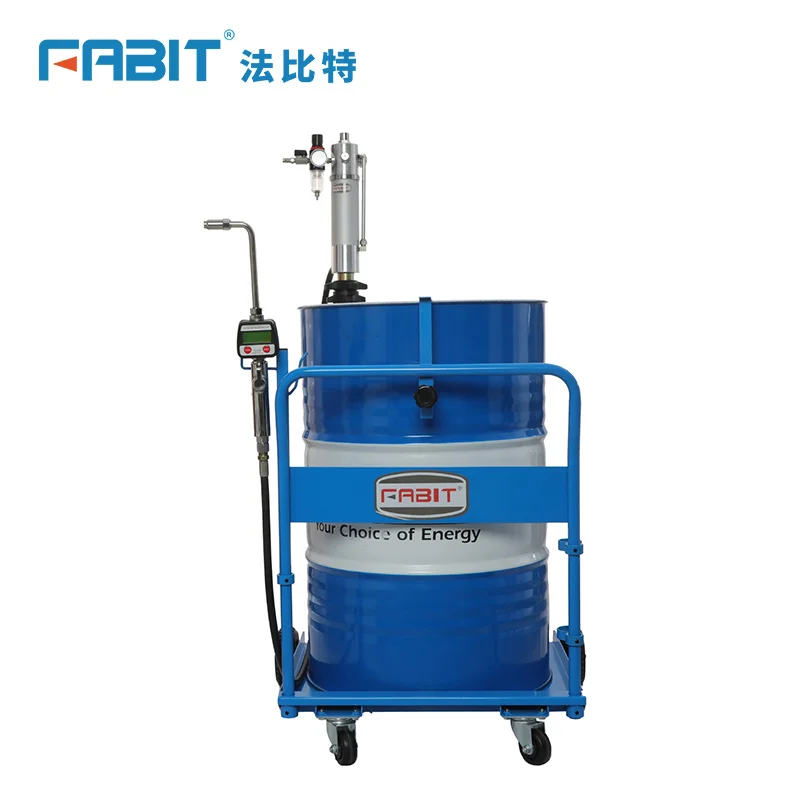

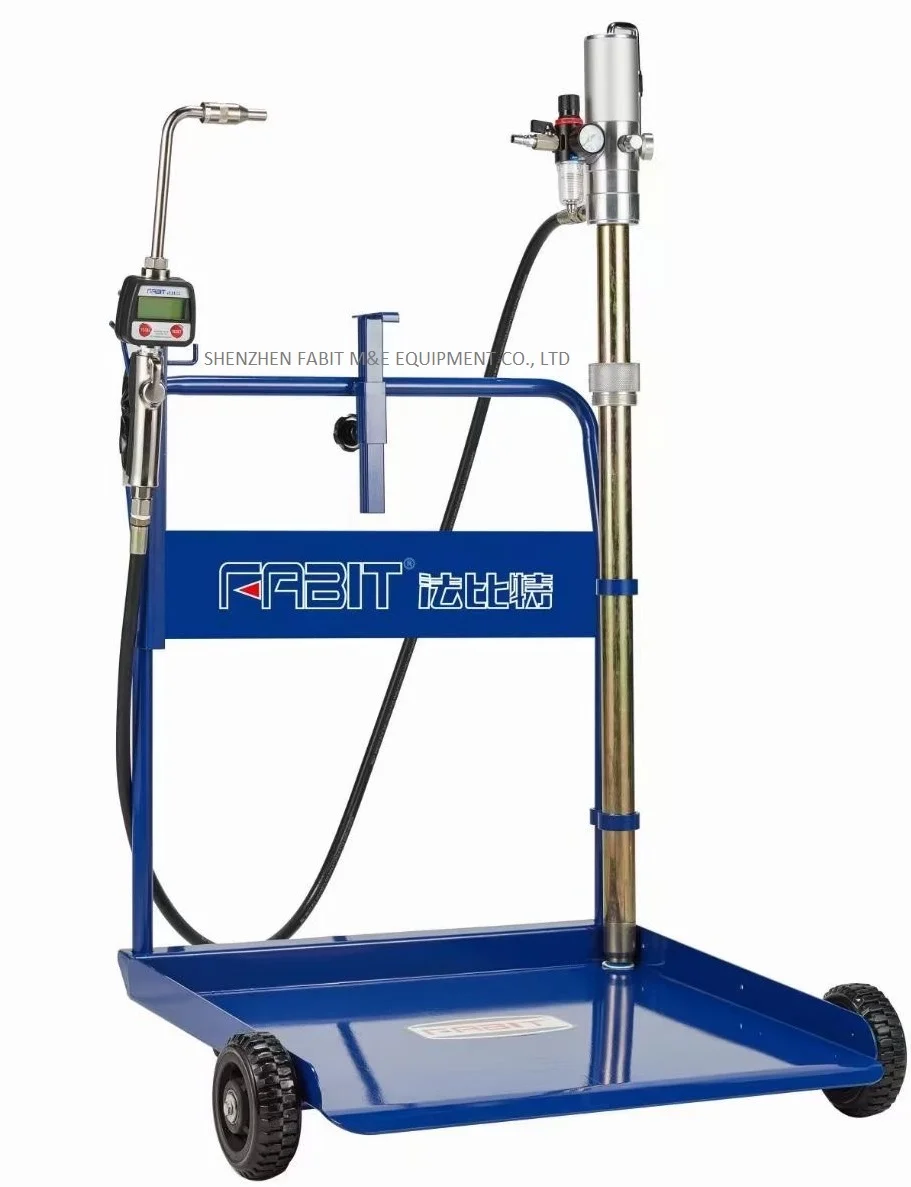

HEAVY-DUTY MOBILE OIL TRANSFER KIT
Equipped with digital oil gun, hose reel and trolley，the oil dispensing kit is applied to a drum or tank of 180~220 KG.
适用于180-220kg 油桶吸油的手拖车式注油套件。
| Model | 37200 | 37201 |
| 气动输油泵比率 Pneumatic pumpratio | 3:1 | 3:1 |
| 进气嘴接头 Airinlet connection | 1/4" | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" | 1/2" |
| 工作压力 Air working pressure | 5-8bar | 5-8bar |
| 最大压力 Maximum pressure | 8bar | 8bar |
| 耗气量 Average air consumption | 300L/min | 300L/min |
| 输送速度 Flow rate | 14L/min | 14L/min |
| 油温 Fluid temperature | -10-60°C | -10-60°C |
| 油品粘度 Max deliverable oil viscosity | 130SAE | 130SAE |
| 吸油管长 Length of pumping tube | 940mm | 940mm |
| 吸油管径 Diameter of pumping tube | 42mm | 42mm |
| 注油枪型式 Oil gun series | 数显注油枪 Digitaloil gun | 预设定注油枪 Pre-set digital oil gun |
| 注油枪咀型式 Type of oil gun nozzle | 自动开闭型 Automati apafiater nozzle | 自动开闭型 Automati apafiater nozzle |
| 计量精度 Measuring precision | 士0.3% | 士0.3% |
| 卷管器型式 Type of hose reel | - | - |
| 卷管器出油管长 Length of outlet reelpipe | - | - |
| 卷管器进油管长 Length of inlet reelpipe | - | - |
| 卷管器管径 Diameter of reelpipe | - | - |
| 拖车适用油桶 Suitable for drums | 180-220L | 180-220L |
| 输油软管管长 Length of filling hose | 4m | 4m |
| 输油软管管径 Diameter of filling hose | 3/8" | 3/8" |
| 联网功能 net working function | 单机版 Stand-alone version | 单机版 Stand-alone version |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸1 Packing size_1 | 875*705*120mm | 875*705*120mm |
| 包装尺寸2 Packing size_2 | 1340*185*180mm | 1340*185*180mm |
| 包装尺寸3 Packing size_3 | - | - |
| 产品重量 Gross weight | 33.3kg | 33.3kg |
产品详情
HEAVY-DUTY MOBILE OIL TRANSFER KIT
Equipped with digital oil gun, hose reel and trolley，the oil dispensing kit is applied to a drum or tank of 180~220 KG.
适用于180-220kg 油桶吸油的手拖车式注油套件。
| Model | 37200 | 37201 |
| 气动输油泵比率 Pneumatic pumpratio | 3:1 | 3:1 |
| 进气嘴接头 Airinlet connection | 1/4" | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" | 1/2" |
| 工作压力 Air working pressure | 5-8bar | 5-8bar |
| 最大压力 Maximum pressure | 8bar | 8bar |
| 耗气量 Average air consumption | 300L/min | 300L/min |
| 输送速度 Flow rate | 14L/min | 14L/min |
| 油温 Fluid temperature | -10-60°C | -10-60°C |
| 油品粘度 Max deliverable oil viscosity | 130SAE | 130SAE |
| 吸油管长 Length of pumping tube | 940mm | 940mm |
| 吸油管径 Diameter of pumping tube | 42mm | 42mm |
| 注油枪型式 Oil gun series | 数显注油枪 Digitaloil gun | 预设定注油枪 Pre-set digital oil gun |
| 注油枪咀型式 Type of oil gun nozzle | 自动开闭型 Automati apafiater nozzle | 自动开闭型 Automati apafiater nozzle |
| 计量精度 Measuring precision | 士0.3% | 士0.3% |
| 卷管器型式 Type of hose reel | - | - |
| 卷管器出油管长 Length of outlet reelpipe | - | - |
| 卷管器进油管长 Length of inlet reelpipe | - | - |
| 卷管器管径 Diameter of reelpipe | - | - |
| 拖车适用油桶 Suitable for drums | 180-220L | 180-220L |
| 输油软管管长 Length of filling hose | 4m | 4m |
| 输油软管管径 Diameter of filling hose | 3/8" | 3/8" |
| 联网功能 net working function | 单机版 Stand-alone version | 单机版 Stand-alone version |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸1 Packing size_1 | 875*705*120mm | 875*705*120mm |
| 包装尺寸2 Packing size_2 | 1340*185*180mm | 1340*185*180mm |
| 包装尺寸3 Packing size_3 | - | - |
| 产品重量 Gross weight | 33.3kg | 33.3kg |
