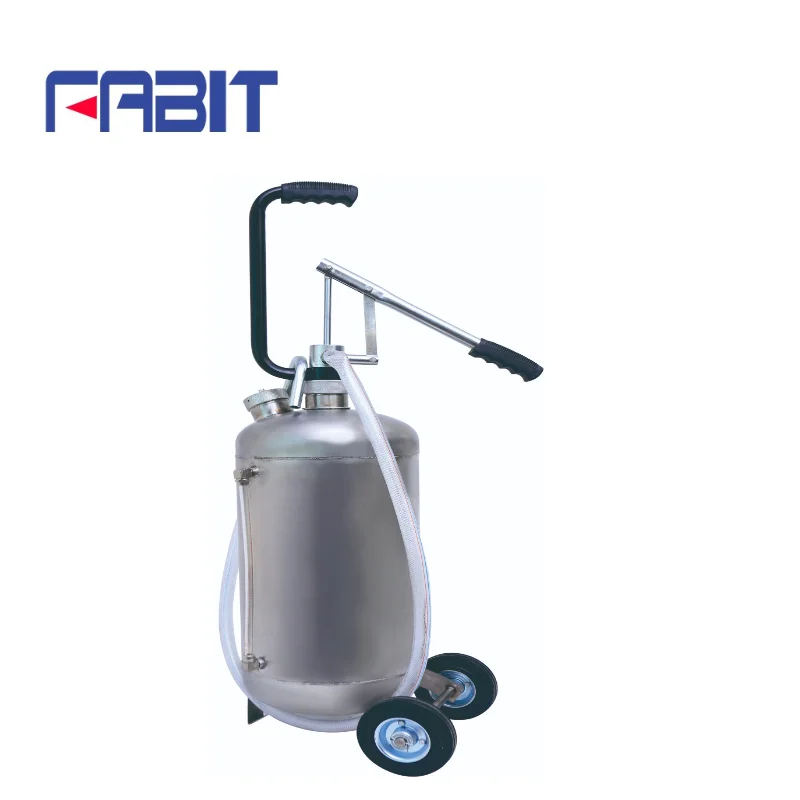

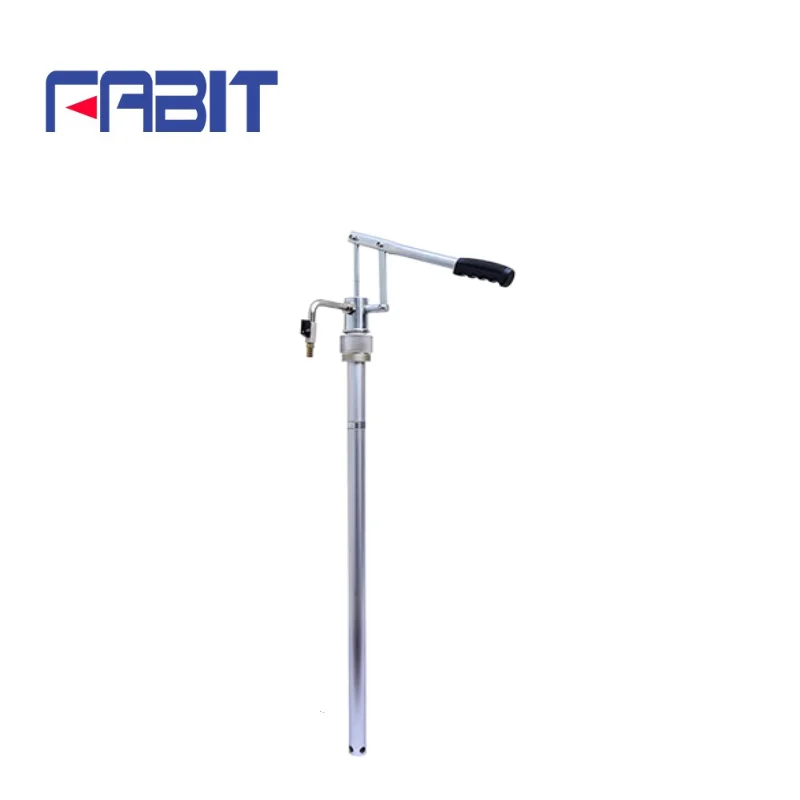

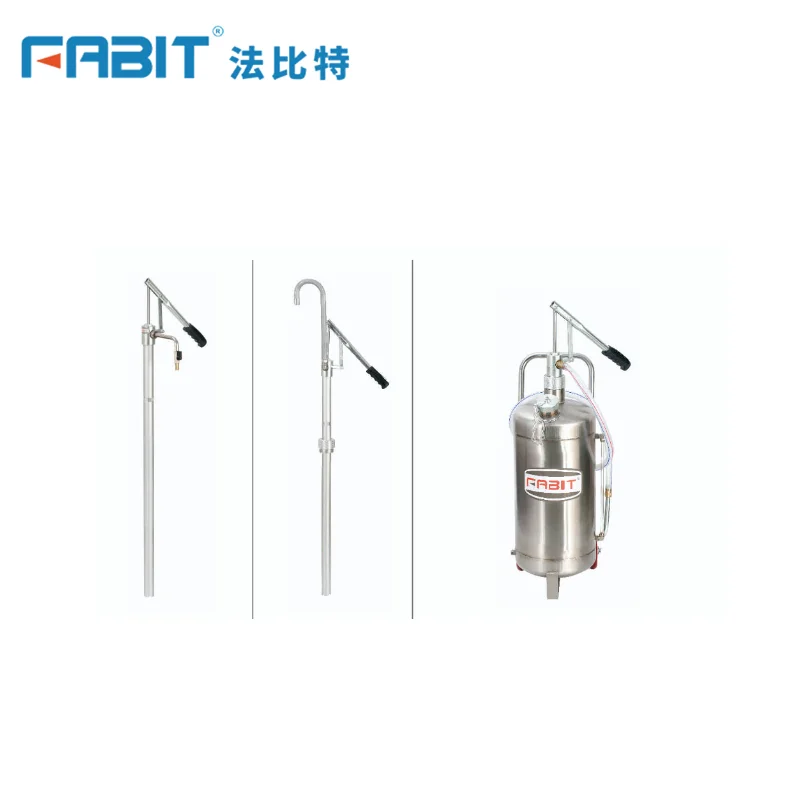

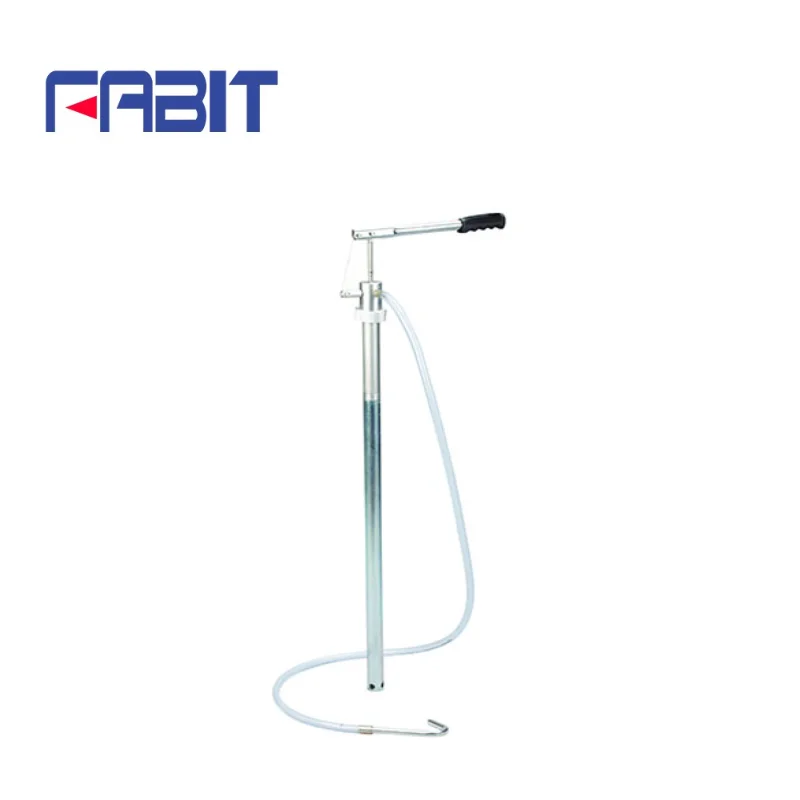

MANUAL OIL DISPENSER
Manual pump dispenser with stainless steel reservoir,designed forhigh-viscosityoils.
使用手压注油泵机型，不锈钢罐体，适用于高浓度油品。

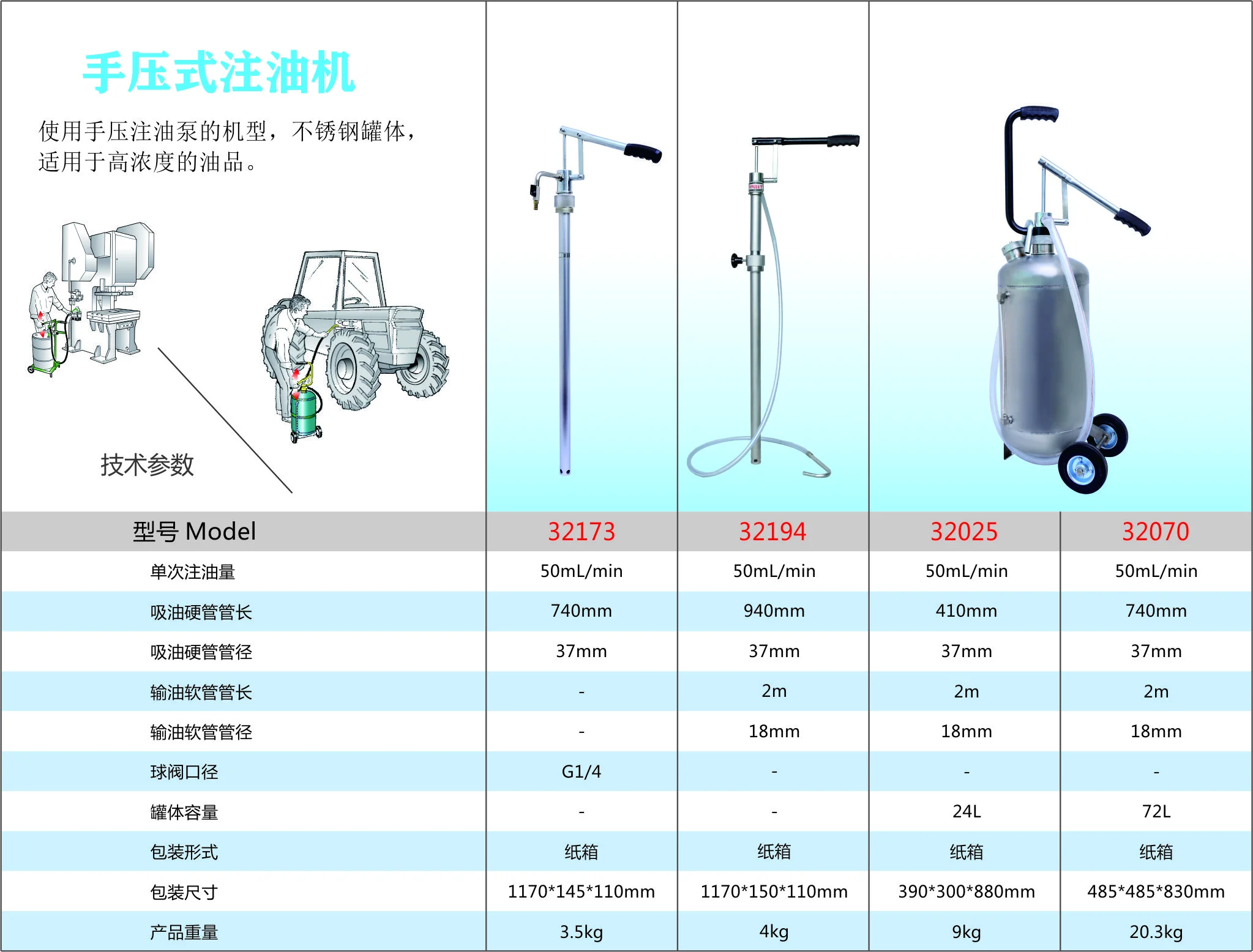

| Model | 32173 | 32194 | 32025 | 32071 |
| 单次注油量 Iniection flow/cycle | 83mL | 83mL | 83mL | 83mL |
| 吸油硬管管长 Length of pumping tube | 740mm | 940mm | 410mm | 740mm |
| 吸油硬管管径 Diameter of pumping tube | 37mm | 37mm | 37mm | 37mm |
| 输油软管管长 Length of filling hose | - | - | 2M | 2M |
| 输油软管管径 Diameter of filling hose | - | - | 18mm | 18mm |
| 球阀口径 Diameter of ball valve | G1/4 | - | - | - |
| 罐体容量 Tankcapacity | - | - | 24L | 72L |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸 Packing size | 1160*145*100mm | 1160*145*100mm | 390*300*880mm | 485*485*830mm |
| 产品重量 Gross weight | 3.6kg | 3.6kg | 9kg | 20.3kg |
产品详情
MANUAL OIL DISPENSER
Manual pump dispenser with stainless steel reservoir,designed forhigh-viscosityoils.
使用手压注油泵机型，不锈钢罐体，适用于高浓度油品。
| Model | 32173 | 32194 | 32025 | 32071 |
| 单次注油量 Iniection flow/cycle | 83mL | 83mL | 83mL | 83mL |
| 吸油硬管管长 Length of pumping tube | 740mm | 940mm | 410mm | 740mm |
| 吸油硬管管径 Diameter of pumping tube | 37mm | 37mm | 37mm | 37mm |
| 输油软管管长 Length of filling hose | - | - | 2M | 2M |
| 输油软管管径 Diameter of filling hose | - | - | 18mm | 18mm |
| 球阀口径 Diameter of ball valve | G1/4 | - | - | - |
| 罐体容量 Tankcapacity | - | - | 24L | 72L |
| 包装形式 Package type | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton | 纸箱 Carton |
| 包装尺寸 Packing size | 1160*145*100mm | 1160*145*100mm | 390*300*880mm | 485*485*830mm |
| 产品重量 Gross weight | 3.6kg | 3.6kg | 9kg | 20.3kg |
