浏览器自带分享功能也很好用哦~比率Ratio：3:1 适用Suit:20-60kg
适用于20-60kg油桶吸油的手拖车式注油套件。
适用于20-60kg油桶吸油的手拖车式注油套件。
在线客服
客服一
产品详情

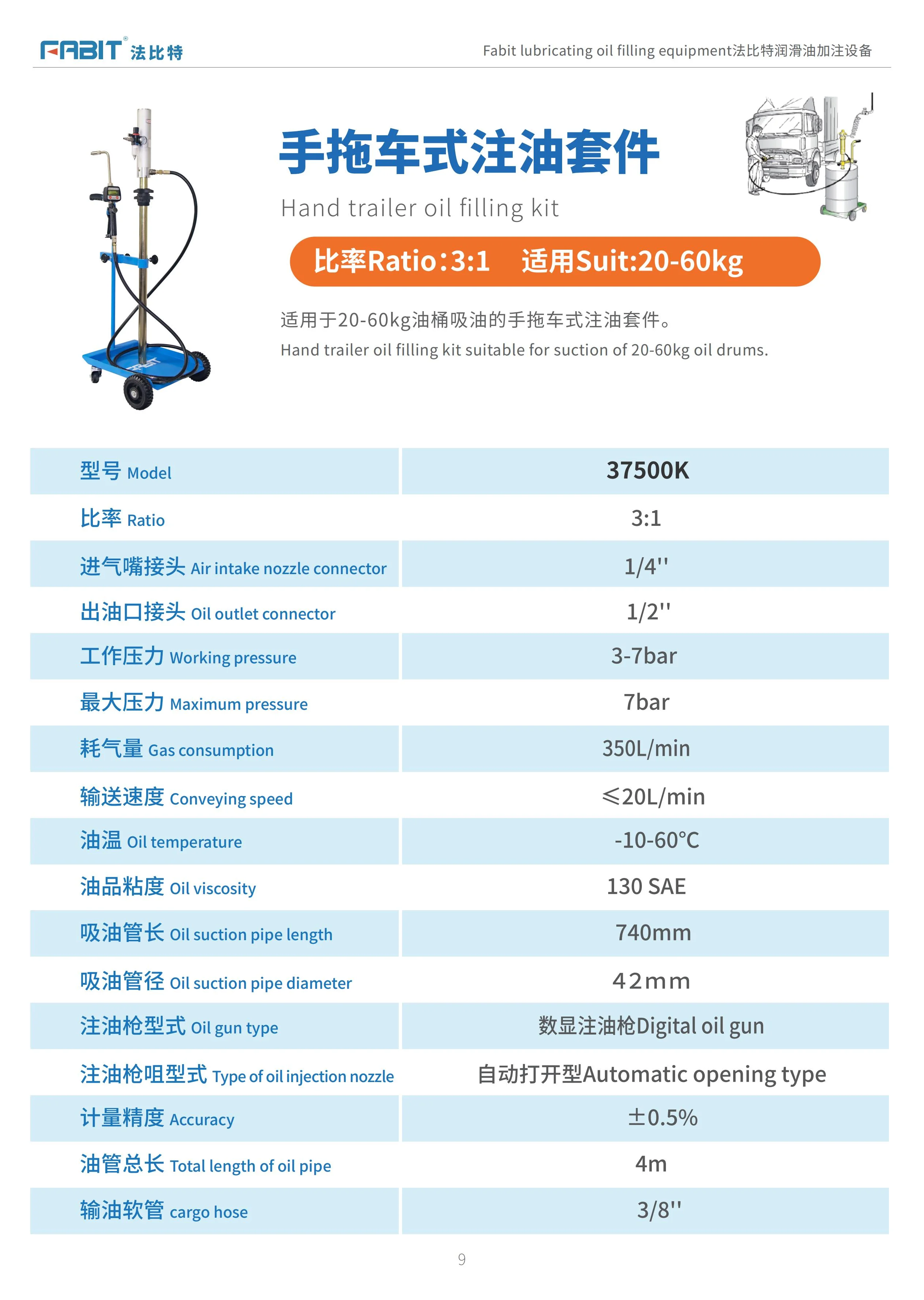

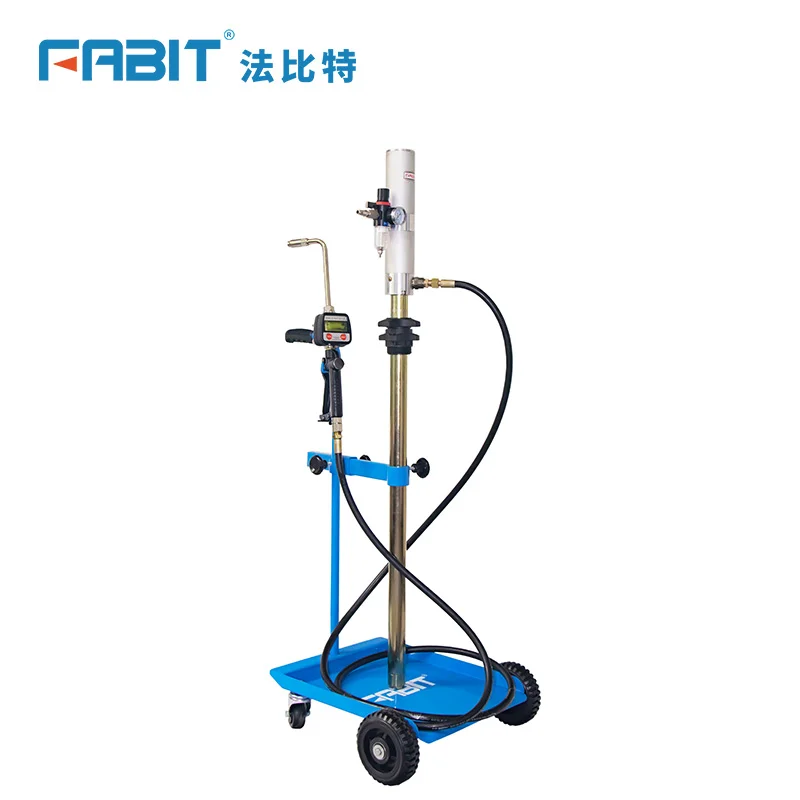

MOBILE OIL TRANSFER KIT
Equipped with trolley and digital oil gun,the oil dispensing kit is applied to a drumor tank of 20~60 KG.
适用于20-60kg 油桶吸油的手拖车式注油套件。
| Model | 37500K |
| 气动输油泵比率 Pneumatic pumpratio | 3:1 |
| 进气嘴接头 Airinlet connection | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" |
| 工作压力 Air working pressure | 3-7bar |
| 最大压力 Maximum pressure | 7bar |
| 耗气量 Average air consumption | 350L/min |
| 输送速度 Flow rate | 20L/min |
| 油温 Fluid temperature | -10-60°C |
| 油品粘度 Max deliverable oil viscosity | 130SAE |
| 吸油管长 Length of pumping tube | 940mm |
| 吸油管径 Diameter of pumping tube | 42mm |
| 注油枪型式 Oil gun series | 数显注油枪 Digitaloil gun |
| 注油枪咀型式 Type ofoil gun nozzle | 自动开闭型 Automati apafiater nozzle |
| 计量精度 Measuring precision | 士0.3% |
| 拖车适用油桶 Suitable for drums | 18-60L |
| 输油软管管长 Length of filling hose | 4m |
| 输油软管管径 Diameter of filling hose | 3/8" |
| 包装形式 Package type | 纸箱 Carton |
| 包装尺寸1 Packing size_1 | 545*495*195mm |
| 包装尺寸2 Packing size_2 | 1125*185*150mm |
| 产品重量 Gross weight | 21.2kg |
产品详情
MOBILE OIL TRANSFER KIT
Equipped with trolley and digital oil gun,the oil dispensing kit is applied to a drumor tank of 20~60 KG.
适用于20-60kg 油桶吸油的手拖车式注油套件。
| Model | 37500K |
| 气动输油泵比率 Pneumatic pumpratio | 3:1 |
| 进气嘴接头 Airinlet connection | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" |
| 工作压力 Air working pressure | 3-7bar |
| 最大压力 Maximum pressure | 7bar |
| 耗气量 Average air consumption | 350L/min |
| 输送速度 Flow rate | 20L/min |
| 油温 Fluid temperature | -10-60°C |
| 油品粘度 Max deliverable oil viscosity | 130SAE |
| 吸油管长 Length of pumping tube | 940mm |
| 吸油管径 Diameter of pumping tube | 42mm |
| 注油枪型式 Oil gun series | 数显注油枪 Digitaloil gun |
| 注油枪咀型式 Type ofoil gun nozzle | 自动开闭型 Automati apafiater nozzle |
| 计量精度 Measuring precision | 士0.3% |
| 拖车适用油桶 Suitable for drums | 18-60L |
| 输油软管管长 Length of filling hose | 4m |
| 输油软管管径 Diameter of filling hose | 3/8" |
| 包装形式 Package type | 纸箱 Carton |
| 包装尺寸1 Packing size_1 | 545*495*195mm |
| 包装尺寸2 Packing size_2 | 1125*185*150mm |
| 产品重量 Gross weight | 21.2kg |
