浏览器自带分享功能也很好用哦~比率Ratio：3:1 流量Fow≤20L/min
适用于油桶180-220kg吸油的壁装式注油套件。
适用于油桶180-220kg吸油的壁装式注油套件。
在线客服
客服一
产品详情

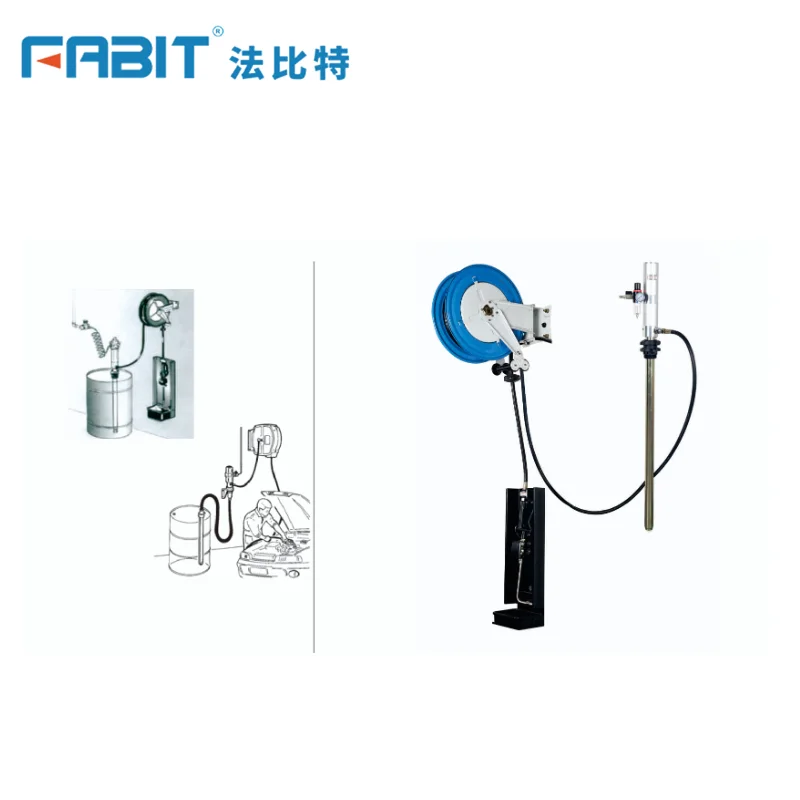

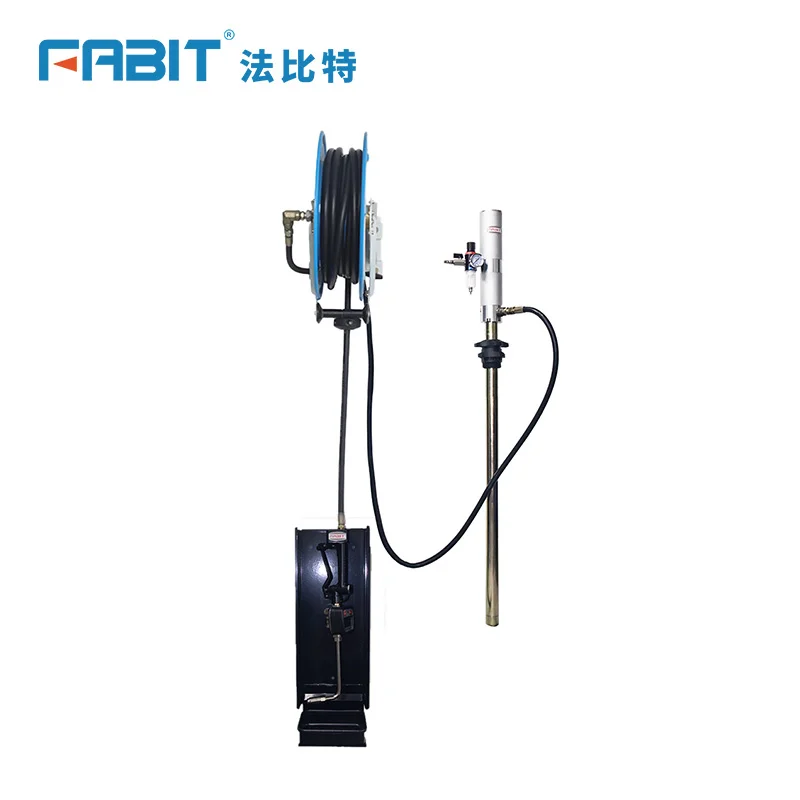

WALL-MOUNTED OIL TRANSFER KIT
Equipped with hose reel series and digital oil gun, the oil dispensing kit is applied to a drum or tank of 180-220 KG.
适用于油桶180-220kg吸油的壁装式注油套件

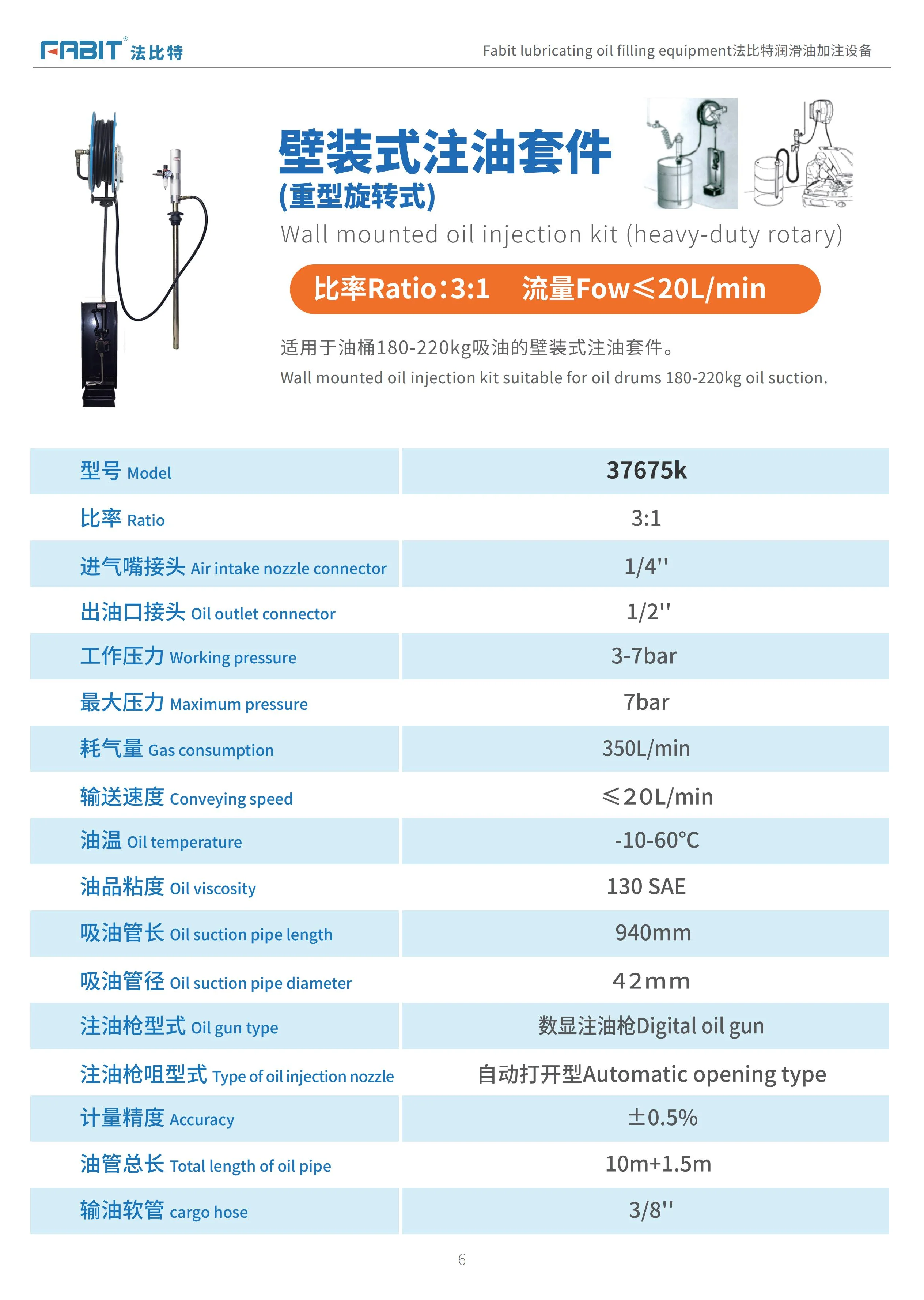

| Model | 37675K |
| 气动输油泵比率 Pneumatic pumpratio | 3:1 |
| 进气嘴接头 Airinlet connection | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" |
| 工作压力 Air working pressure | 3-7bar |
| 最大压力 Maximum pressure | 7bar |
| 耗气量 Average air consumption | 350L/min |
| 输送速度 Flow rate | 20L/min |
| 油温 Fluid temperature | -10-60°C |
| 油品粘度 Max deliverable oil viscosity | 130SAE |
| 吸油管长 Length of pumping tube | 940mm |
| 吸油管径 Diameter of pumping tube | 42mm |
| 注油枪型式 Oil gun series | 数显注油枪 Digitaloil gun |
| 注油枪咀型式 Type ofoil gun nozzle | 自动开闭型 Automati apafiater nozzle |
| 计量精度 Measuring precision | 士0.3% |
| 卷管器型式 Type of hose reel | 重型旋转式 Heavy-duty rotary type |
| 卷管器出油管长 Length of outlet reelpipe | 10m |
| 卷管器进油管长 Length of inlet reelpipe | 1.5m |
| 卷管器管径 Diameterof reelpipe | 3/8" |
| 挂枪架 Oil gun bracket | 150*210*605mm |
| 支架孔径 Wall-bracket diameter | - |
| 吸油软管管长 Length of suction hose | - |
| 吸油软管管径 Diameter of suction hose | - |
| 吸油硬管管长 Length of pumping tube | 10m+1.5mm |
| 吸油硬管管径 Diameter of pumping tube | - |
| 包装形式 Package type | 纸箱 Carton |
| 包装尺寸1 Packingsize_1 | 565*545*245mm |
| 包装尺寸2 Packingsize_2 | 1325*300*155mm |
| 产品重量 Gross weight | 38.5kg |
产品详情
WALL-MOUNTED OIL TRANSFER KIT
Equipped with hose reel series and digital oil gun, the oil dispensing kit is applied to a drum or tank of 180-220 KG.
适用于油桶180-220kg吸油的壁装式注油套件
| Model | 37675K |
| 气动输油泵比率 Pneumatic pumpratio | 3:1 |
| 进气嘴接头 Airinlet connection | 1/4" |
| 出油口接头 Fluid outlet connection | 1/2" |
| 工作压力 Air working pressure | 3-7bar |
| 最大压力 Maximum pressure | 7bar |
| 耗气量 Average air consumption | 350L/min |
| 输送速度 Flow rate | 20L/min |
| 油温 Fluid temperature | -10-60°C |
| 油品粘度 Max deliverable oil viscosity | 130SAE |
| 吸油管长 Length of pumping tube | 940mm |
| 吸油管径 Diameter of pumping tube | 42mm |
| 注油枪型式 Oil gun series | 数显注油枪 Digitaloil gun |
| 注油枪咀型式 Type ofoil gun nozzle | 自动开闭型 Automati apafiater nozzle |
| 计量精度 Measuring precision | 士0.3% |
| 卷管器型式 Type of hose reel | 重型旋转式 Heavy-duty rotary type |
| 卷管器出油管长 Length of outlet reelpipe | 10m |
| 卷管器进油管长 Length of inlet reelpipe | 1.5m |
| 卷管器管径 Diameterof reelpipe | 3/8" |
| 挂枪架 Oil gun bracket | 150*210*605mm |
| 支架孔径 Wall-bracket diameter | - |
| 吸油软管管长 Length of suction hose | - |
| 吸油软管管径 Diameter of suction hose | - |
| 吸油硬管管长 Length of pumping tube | 10m+1.5mm |
| 吸油硬管管径 Diameter of pumping tube | - |
| 包装形式 Package type | 纸箱 Carton |
| 包装尺寸1 Packingsize_1 | 565*545*245mm |
| 包装尺寸2 Packingsize_2 | 1325*300*155mm |
| 产品重量 Gross weight | 38.5kg |
